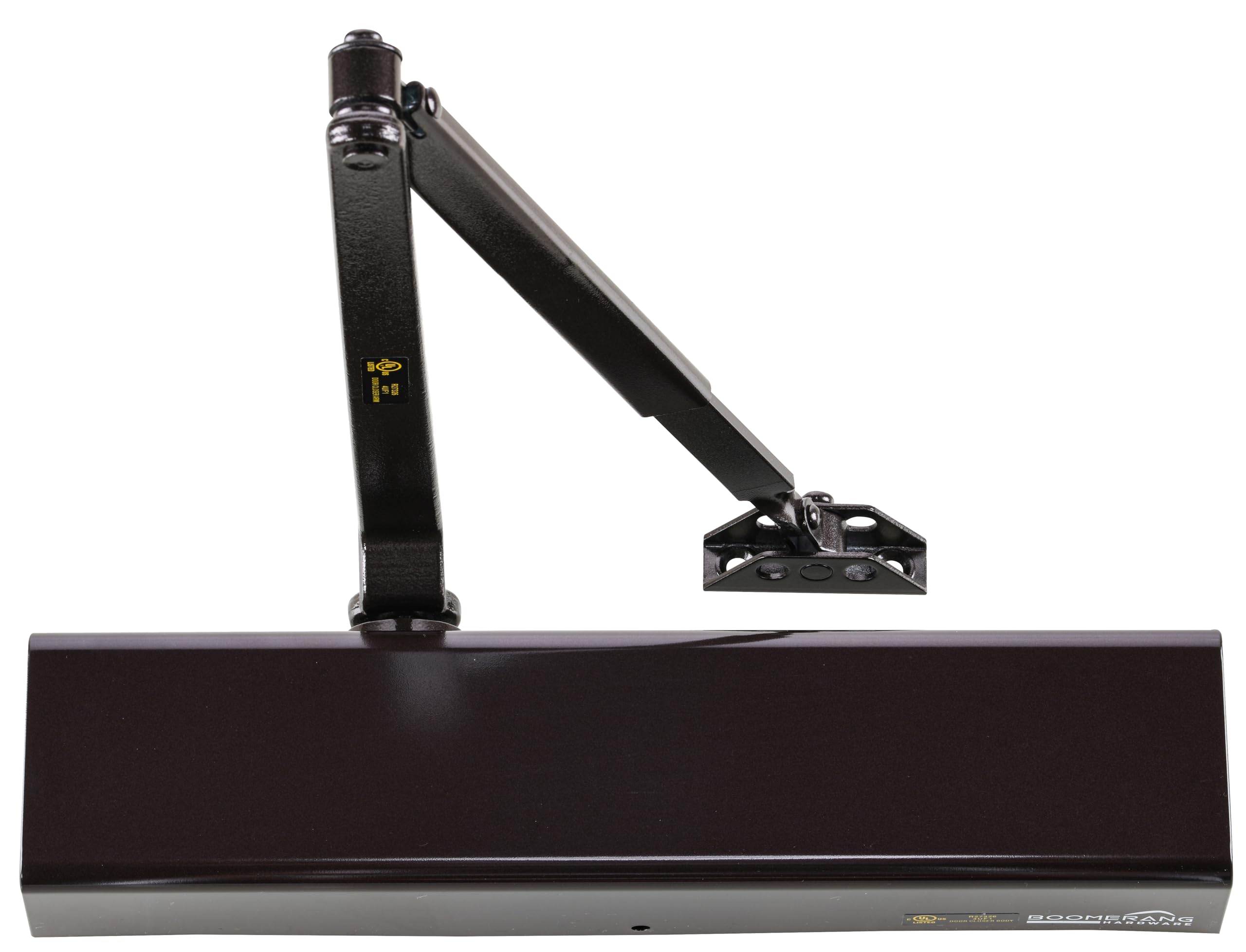

Designer and Architect #1 recommended line of Automatic Commercial Door Closures. Boomerang Hardware closers are beautifully designed and architecturally pleasing to give your entry, storefront, or opening a sharp looking closing devise.
Boomerang Hardware D8016 - This Door Closer is a Perfect solution for Heavy / high foot traffic, High Abuse Areas and Extreme Temperatures Entrances and exits for Schools, Office Buildings, Hospitals and other public places.

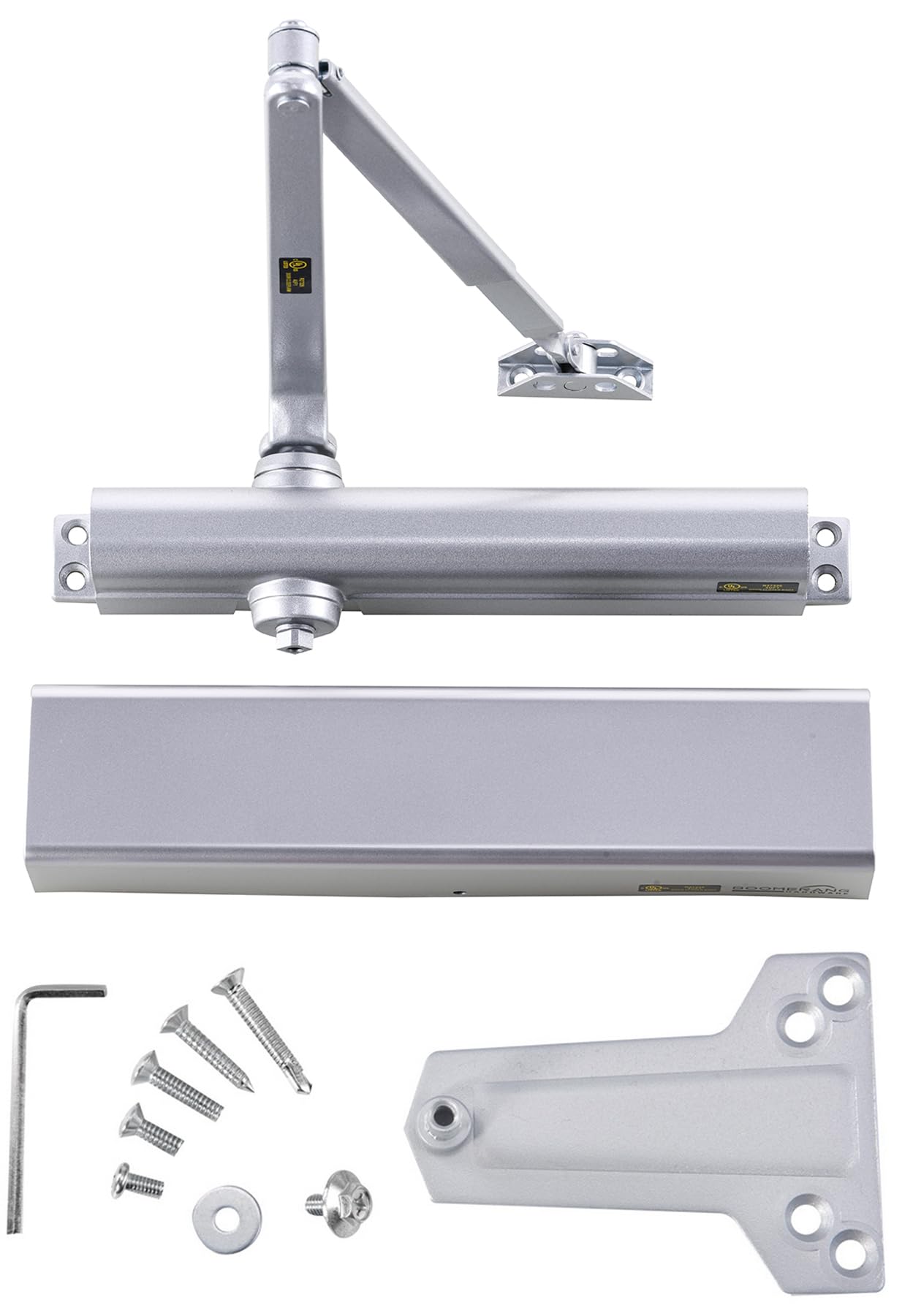

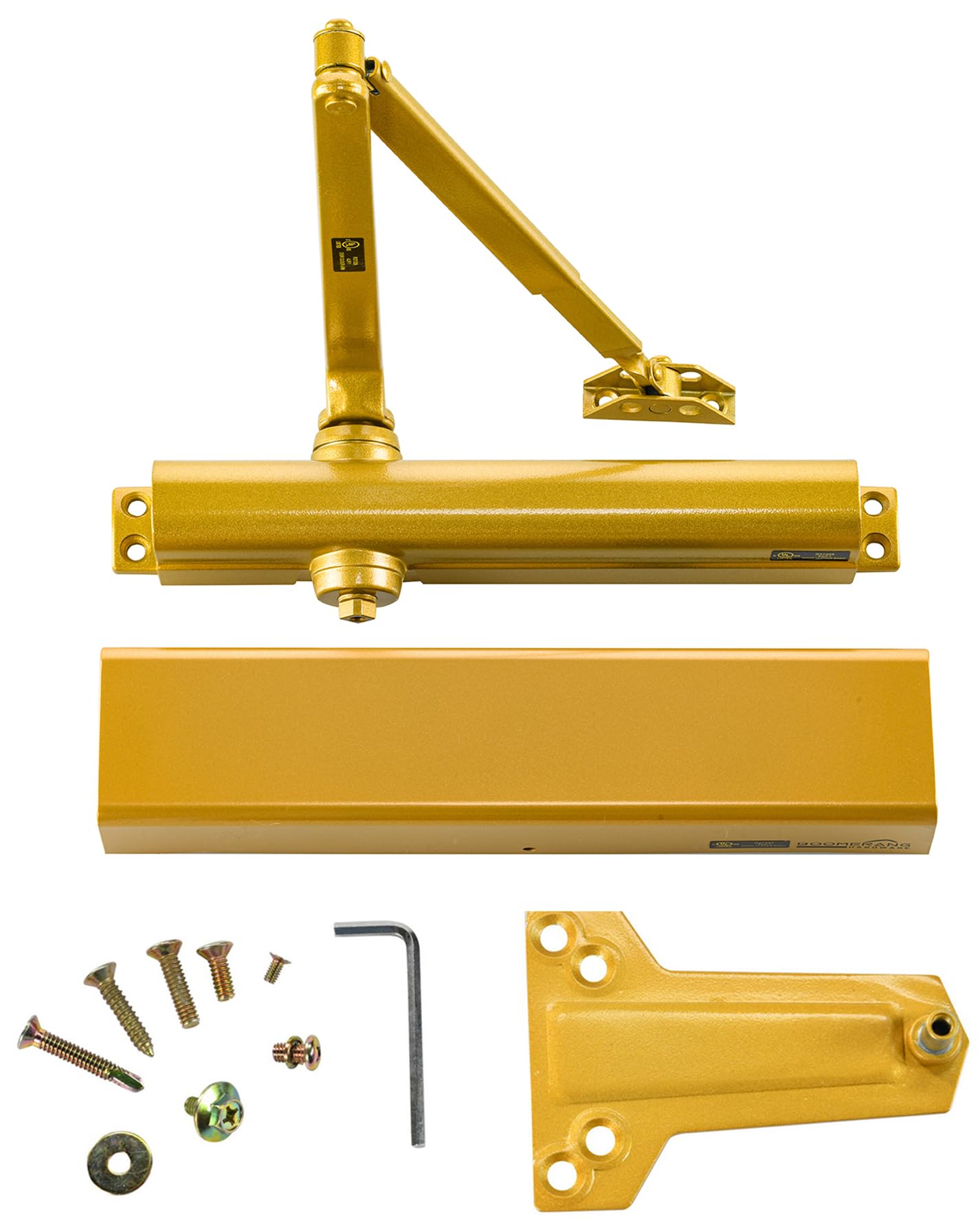

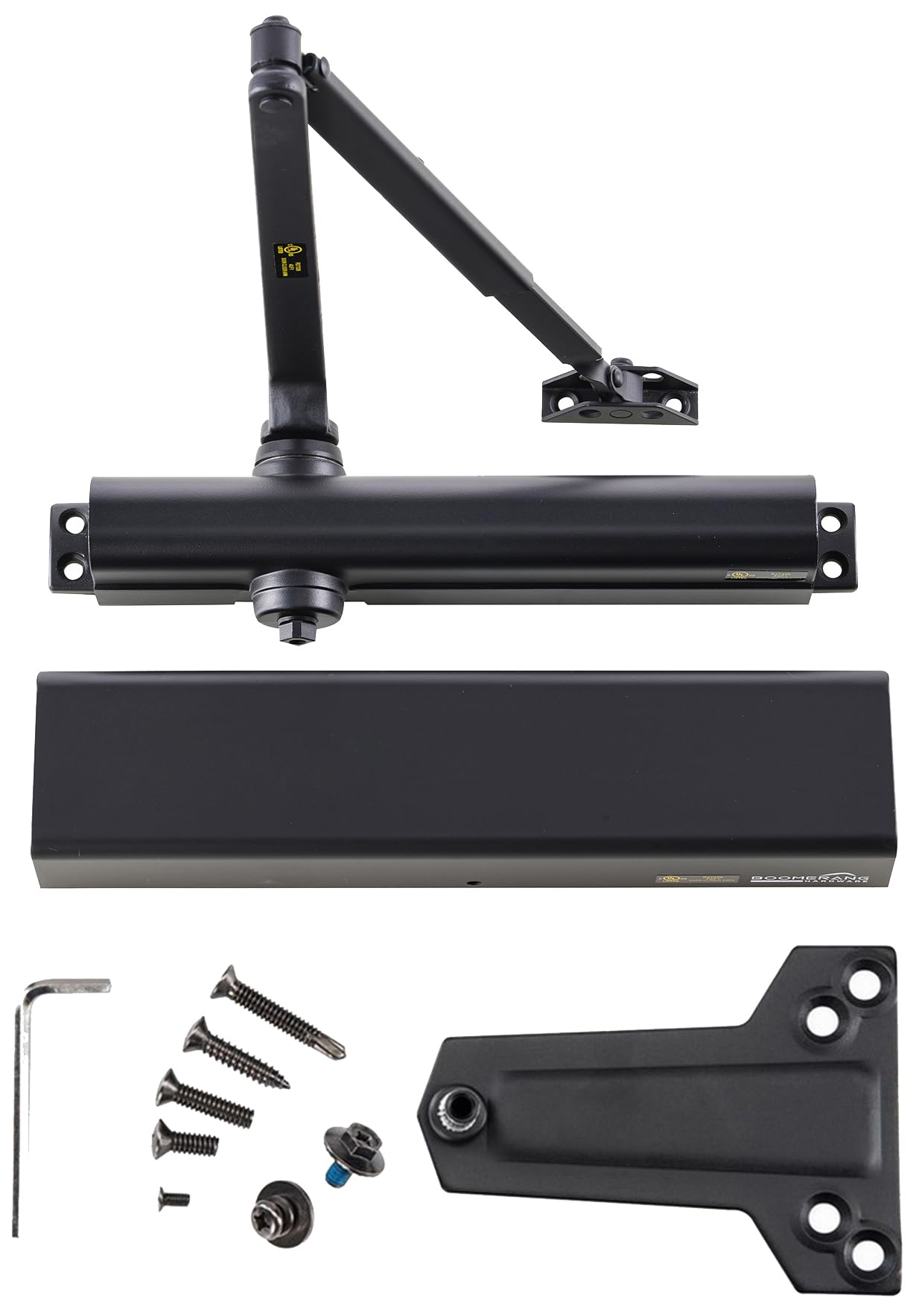

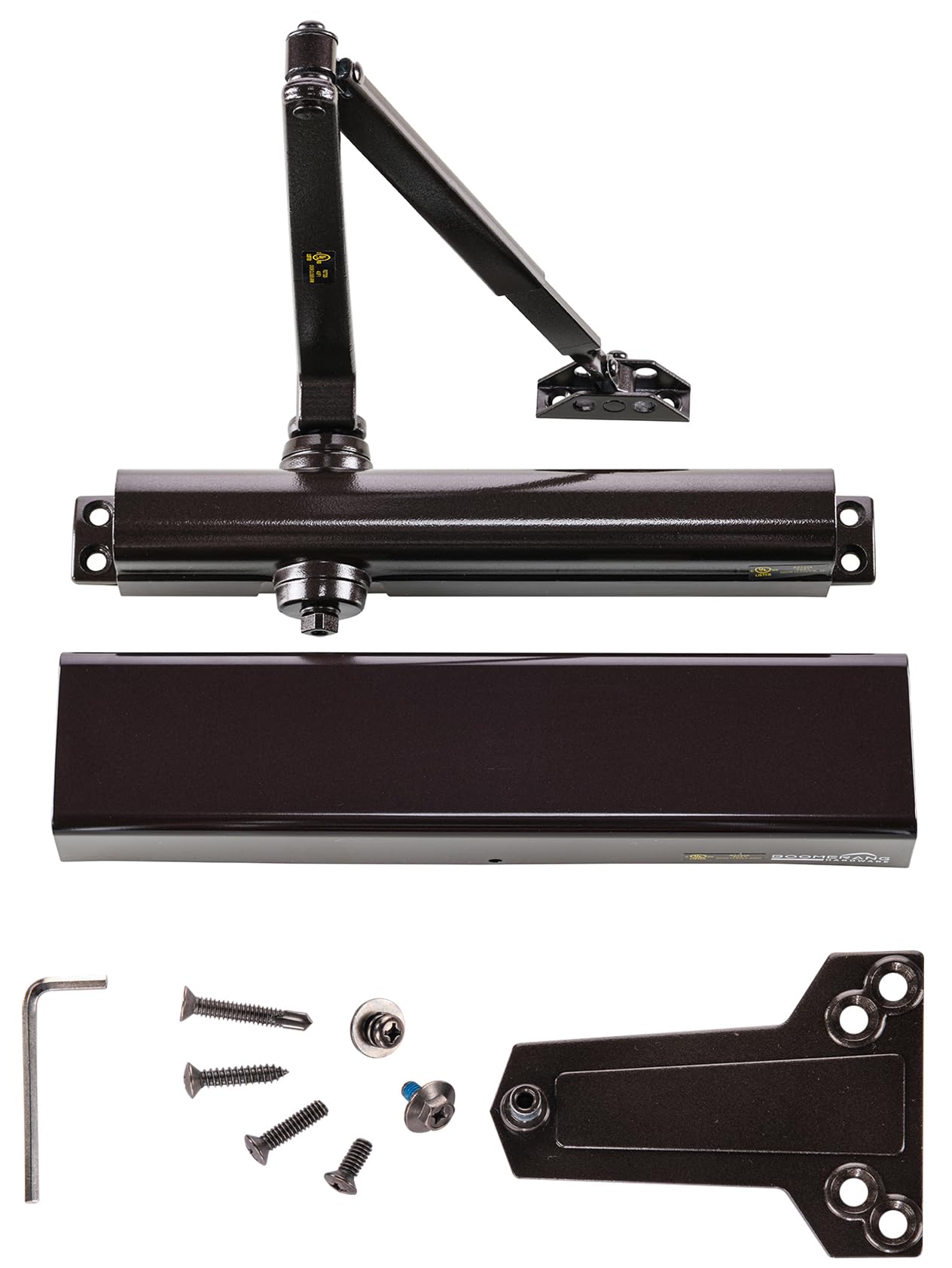

INCLUDED:

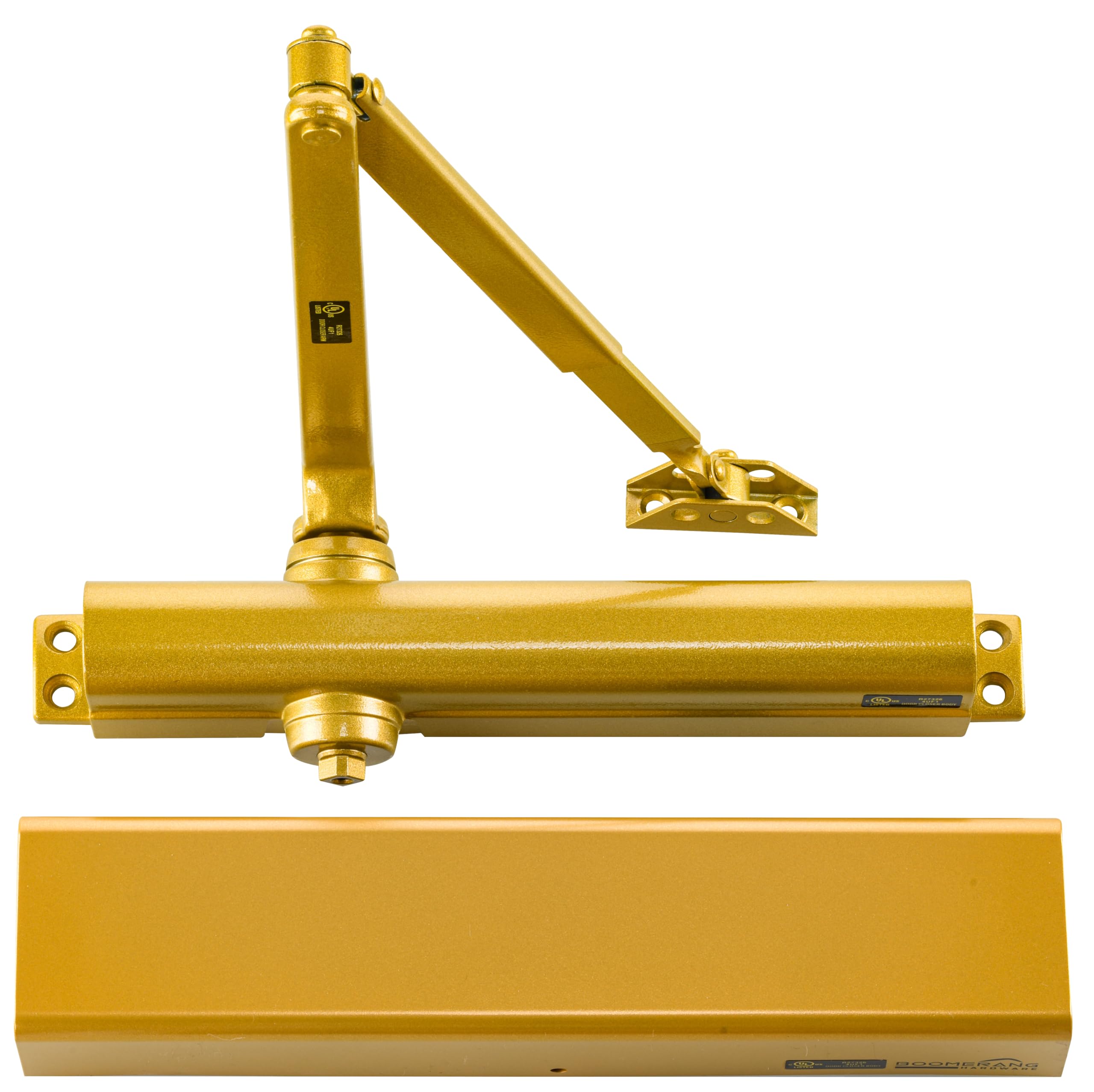

--Heavy Duty Cast Aluminum Body Commercial Door Closer
--Brackets and Soffit Plate to allow Regular, Top Jamb, and Parallel Arm Mount Installations
--Machine and Wood Screws
--High Impact Molded Cover Included --Installation Guide & Mounting Template
SPECIFICATIONS:
---Door weight- up to 330 lbs
---1-6 Power Adjustable
---Non Handed
---4 Adjustable Valves (Latch, Sweep, Backcheck & Delayed Action)
---ADA Barrier-Free Compliant
---1-6 Power Adjustable
---Cast Aluminum Body
---Heat Treated Piston
---Powder Coated Finished Body to enhance corrosion resistance
---Tri-Pack (Regular, Top Jamb, and Parallel Arm Mounts) standard, Non Handed, Adjustable Back Check Valve

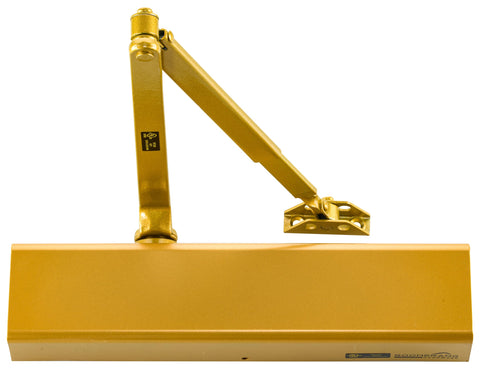

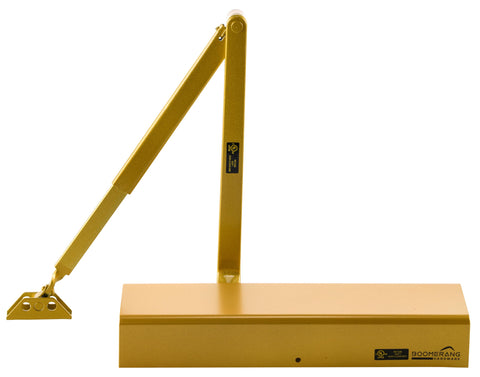

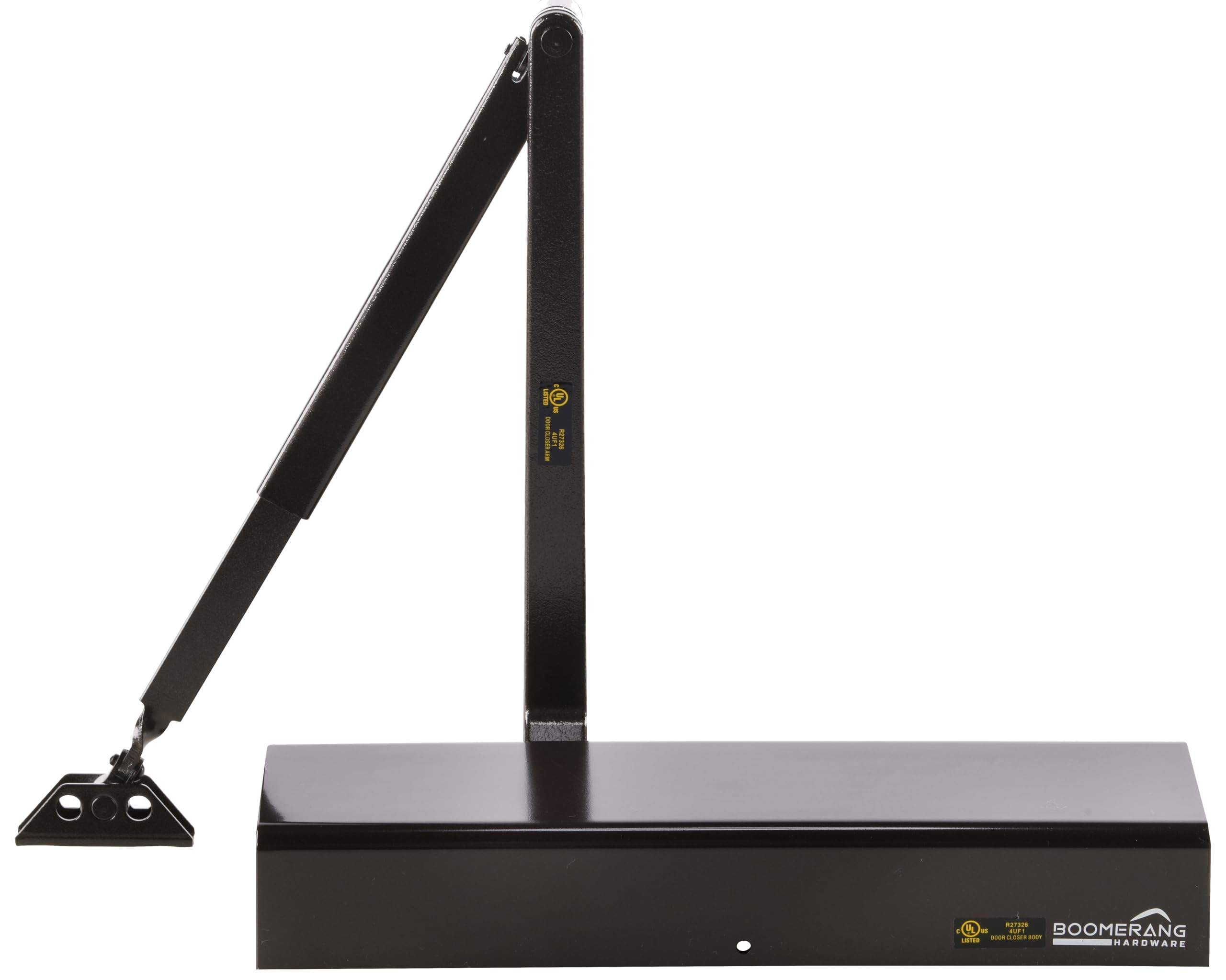

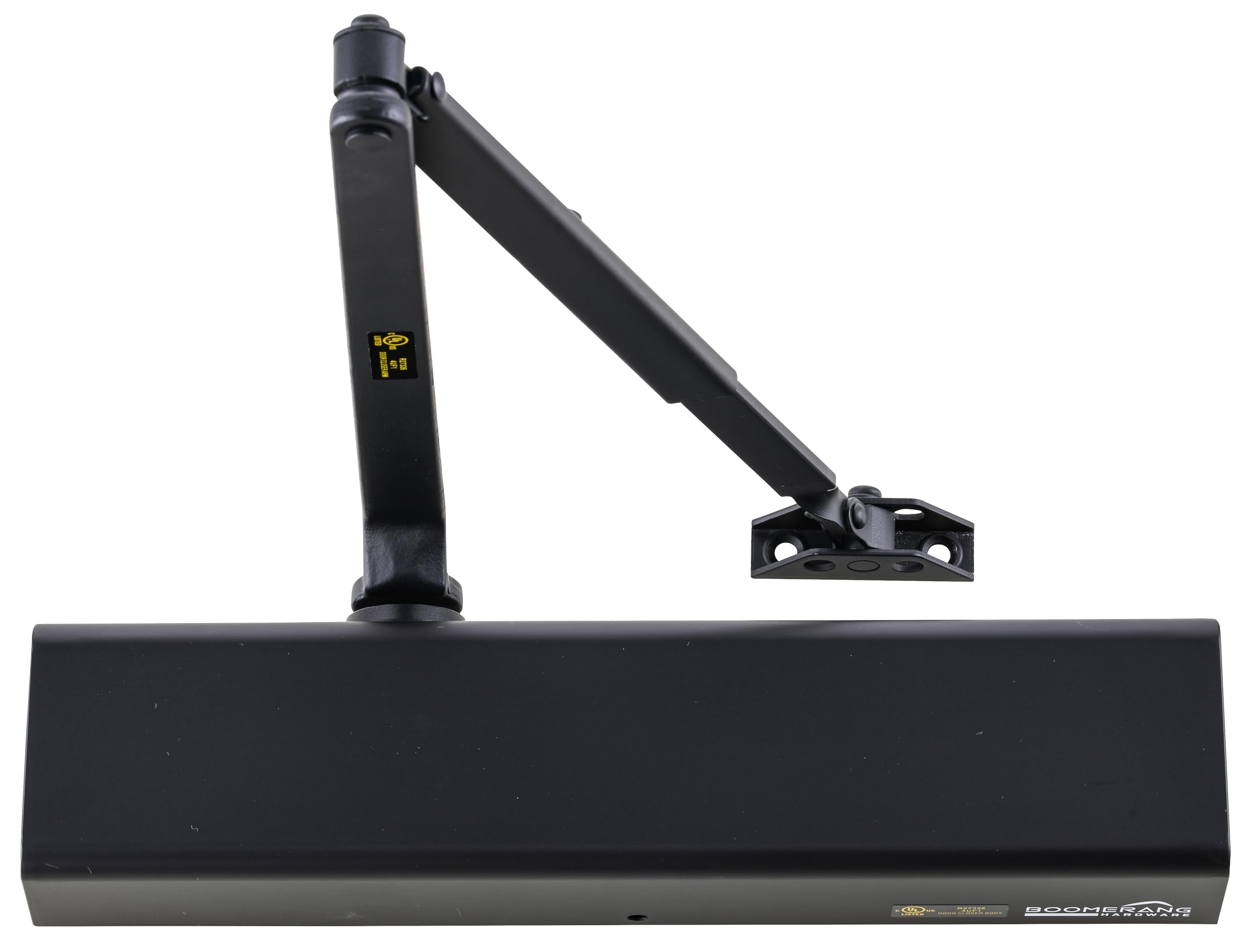

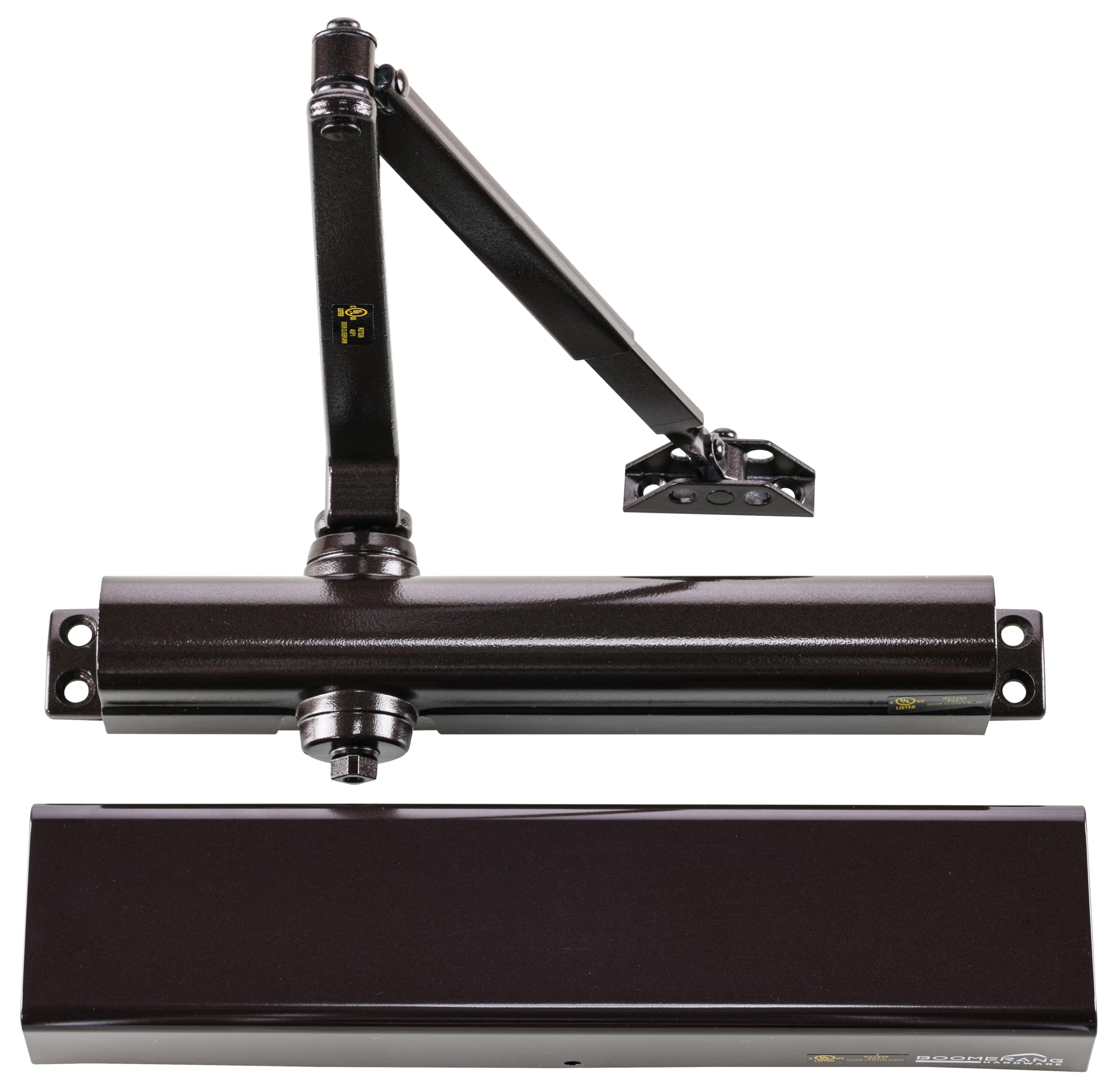

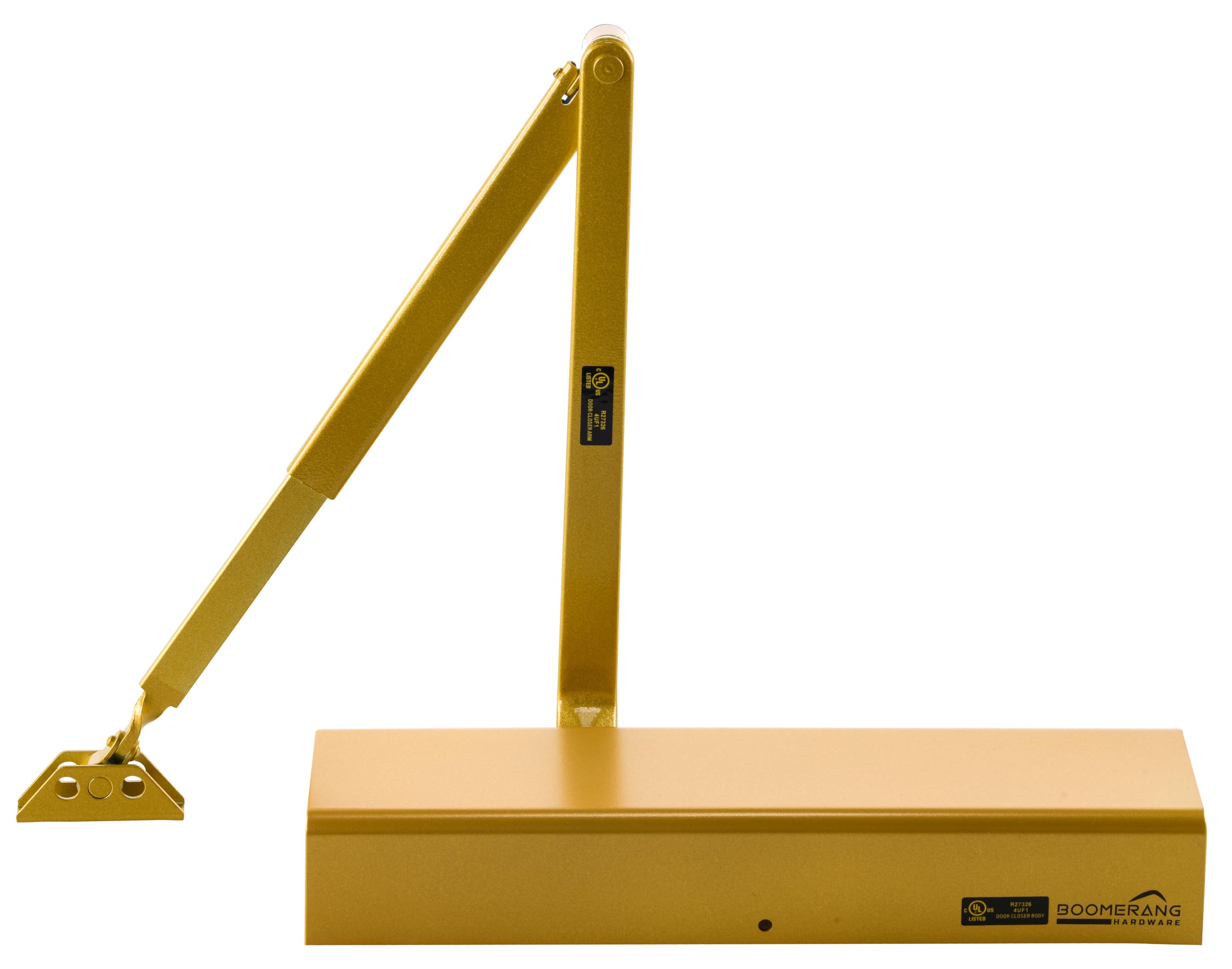

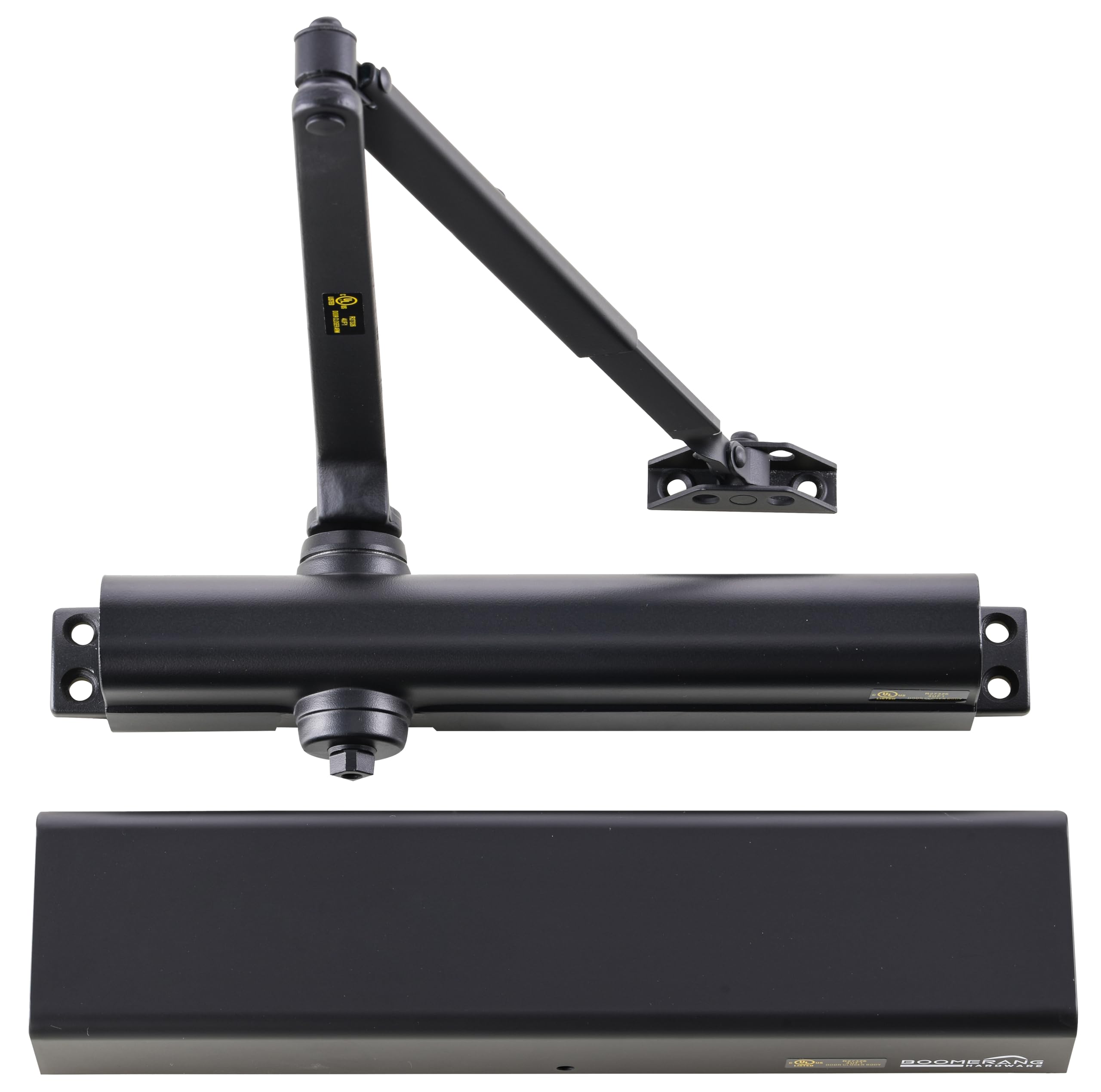

---Comes in 4 colors (Dark Bronze, Aluminum/Silver, Matte Black and Painted Brass/Gold
---Screw/bolt Pattern: 12" c-c width x 3/4" c-c height
WARRANTY: 20 years
CERTIFICATIONS:
---BHMA/ANSI 156.4 Grade 1 to 2,000,000+ cycles
---UL Fire Rated Listed - 3 hrs
---ADA Compliant
COMPARABLE DOOR CLOSERS:
LCN 1460FC, Norton 8501, Dorma 8600, Cal-Royal CR801, Hager 5200, Sargent 1431, Dor-O-Matic SC80, Corbin Russwin 5000, Yale 3501, Lawrence LH816 & LYNN Hardware DC8016, Inox DC8516, Lynn DC8016
Other Boomerang Hardware Closers:
---D9016 = Extra Heavy Duty Door Closer
---D8016 = Heavy Duty Door Closer
---D4016 = Medium/Heavy Duty Door Closer
---D703 = Medium Duty Door Closer
---D503 = Light/Medium Duty Door Closer

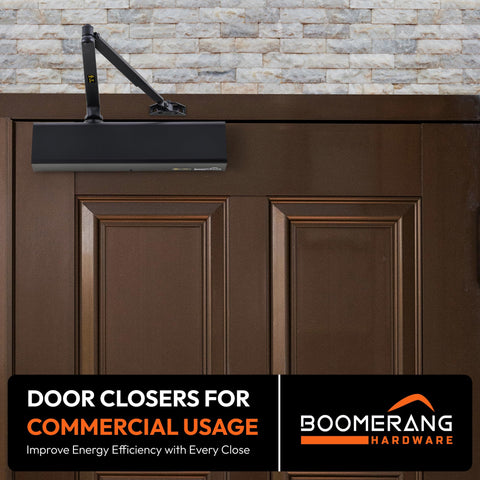

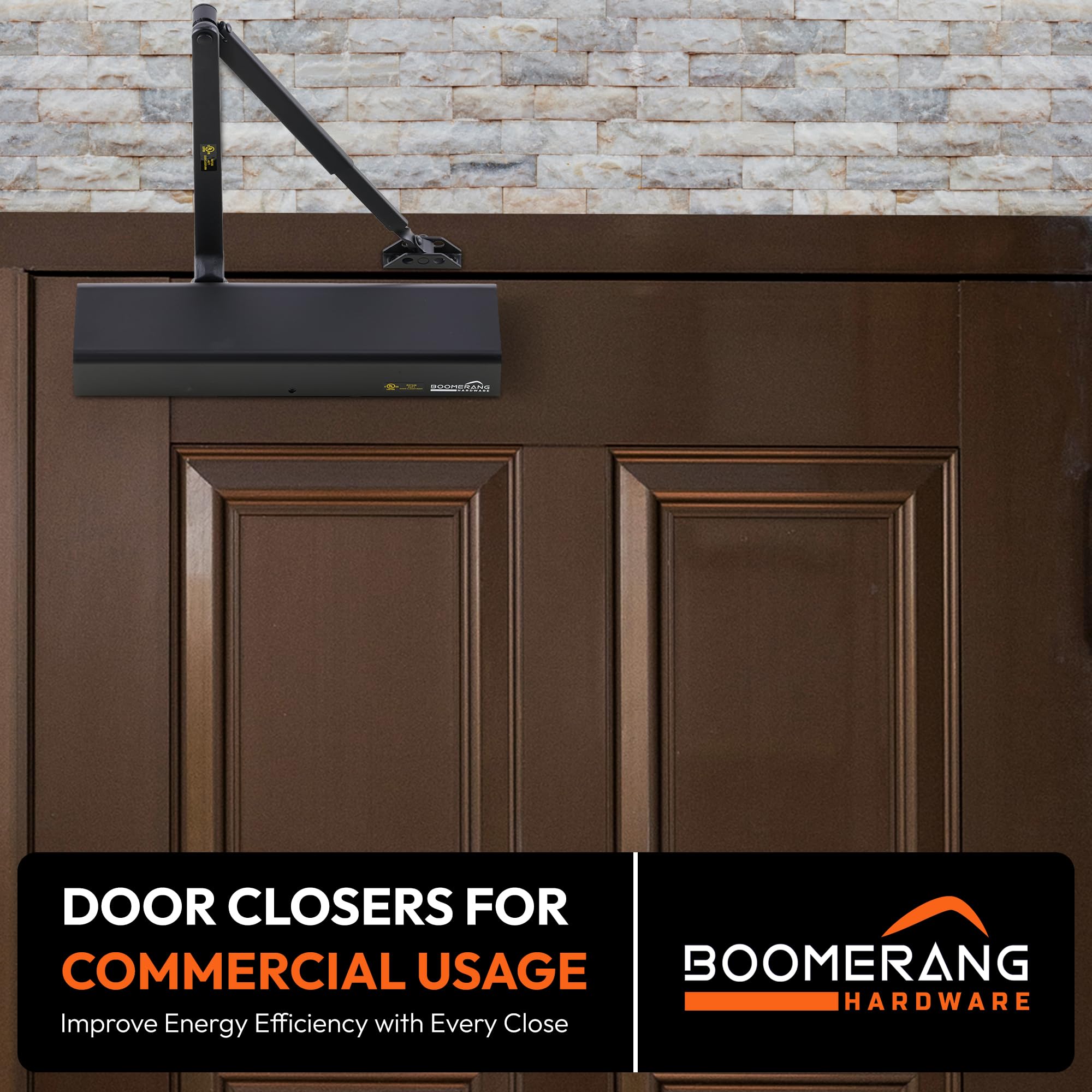

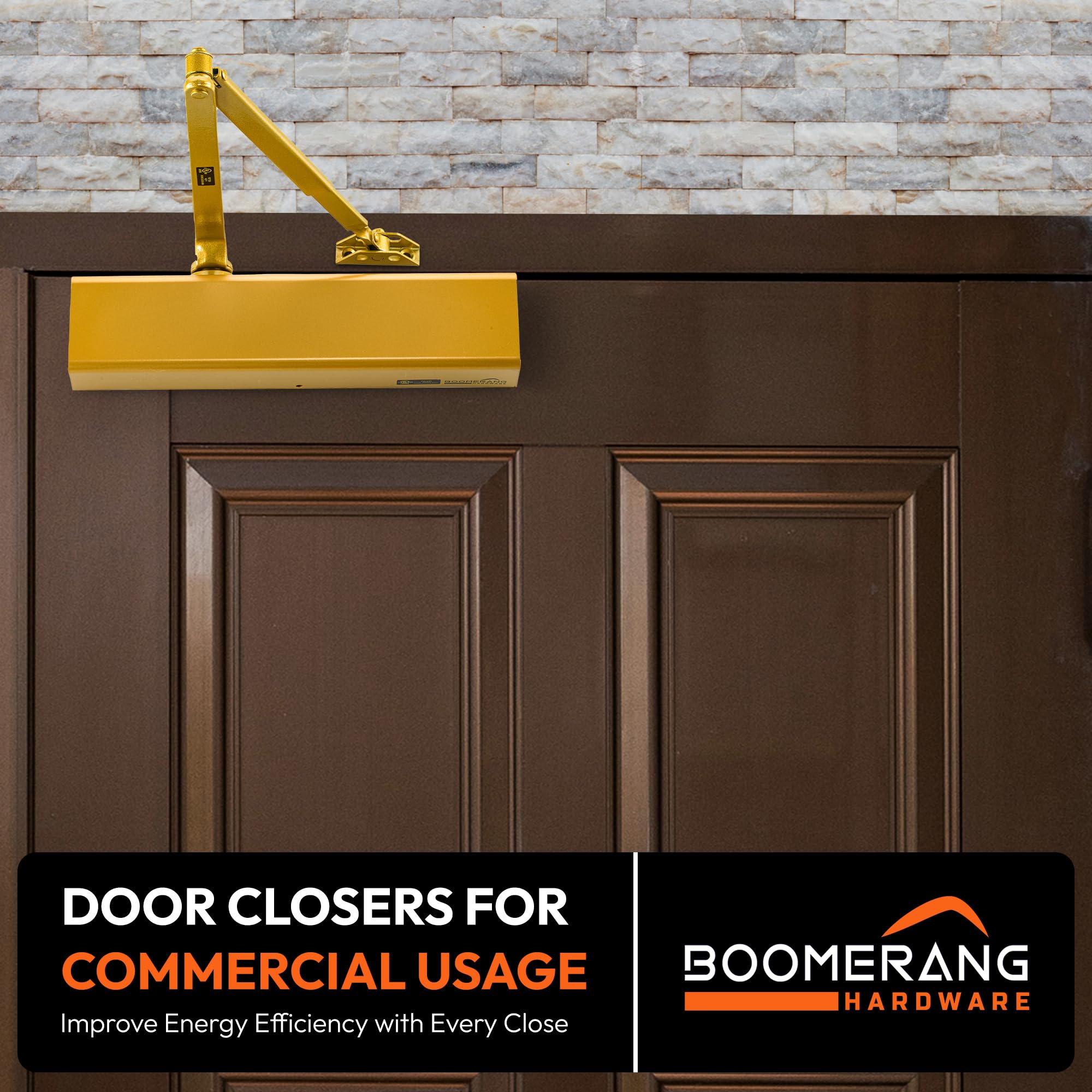

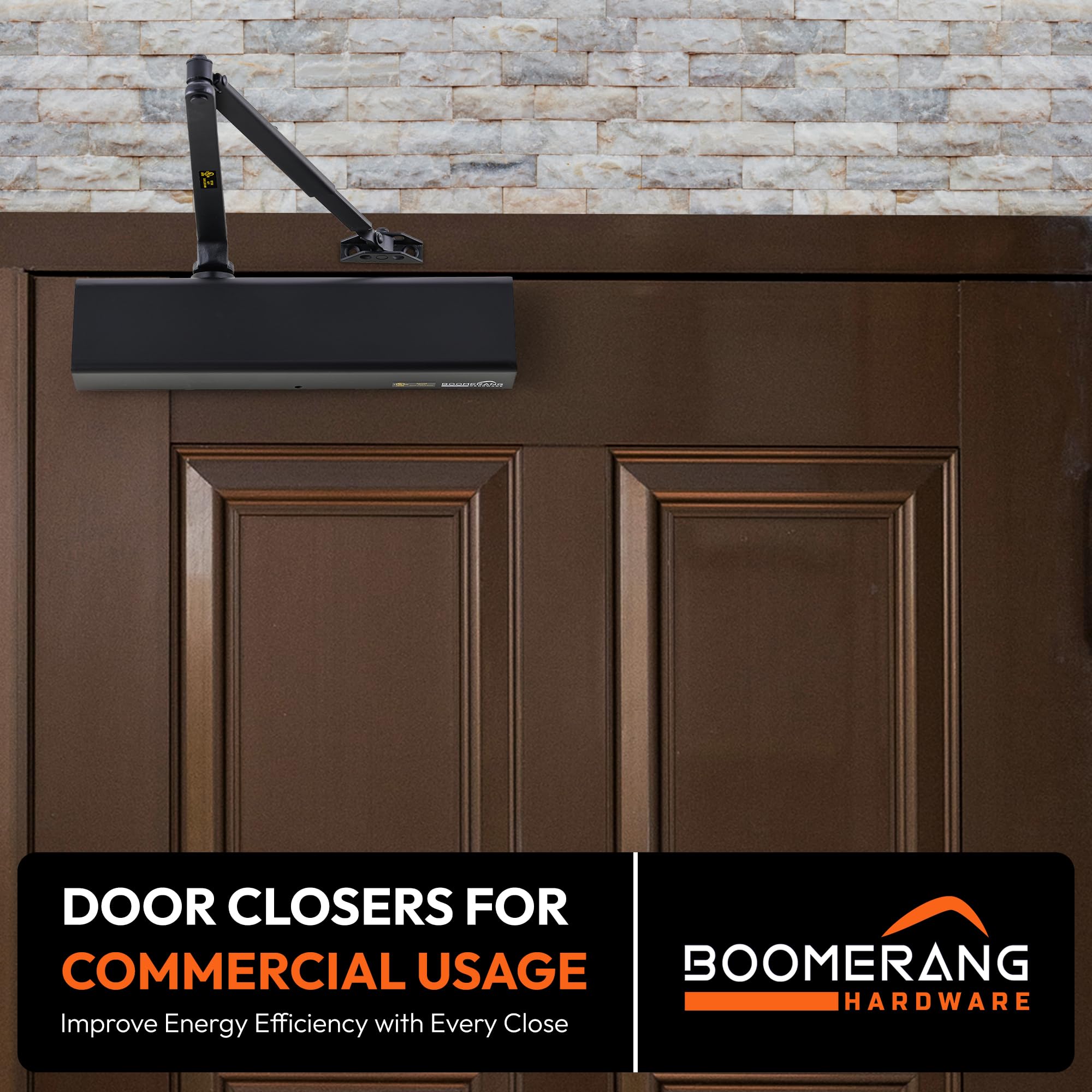

- COMMERCIAL USAGE: The BOOMERANG HARDWARE D8016 (Slim Line) Automatic Door Closer high-traffic entrances, such as aluminum storefronts, factories, schools, restaurants, and other public places. This is a door automatic closer for doors that weigh up to 150kg (330lbs max) and are (800-1500mm, 31-60 inch) wide. Also, it is a non-handed closer that will work on left- or right-handed doors exposed to extreme temperatures.
- MATERIAL: This door hydraulic closer is manufactured from cast aluminum, with wrought steel arm. It features a heat-treated piston and a powder-coated body to enhance corrosion resistance. The heavy-duty door closer features 4 valves for adjustable closing speed, latching speed, Delayed Action and backcheck. This automatic door closer latches while maintaining quiet operation.
- CERTIFICATIONS: These auto close door hinges have a UL-certified three-hour fire rating and are ADA compliant. The Boomerang Hardware closers also carry the ANSI / BHMA A156.4 certification. As ANSI Grade 1 commercial door hardware with 2 million cycles tested D8016 suits high-traffic applications, such as interior and exterior doors of department stores, offices, and more. This model also complies with accessible design standards, ADA compliant

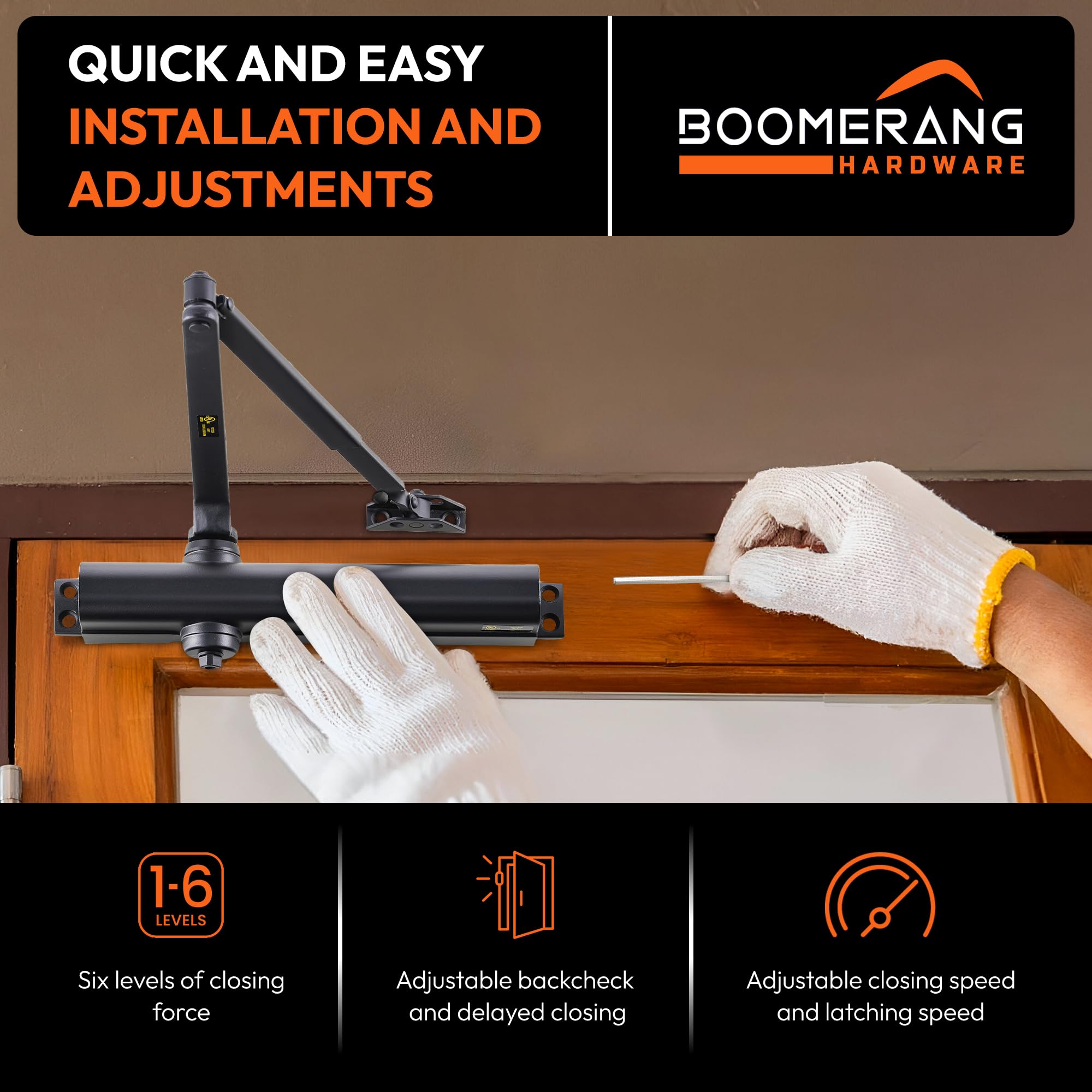

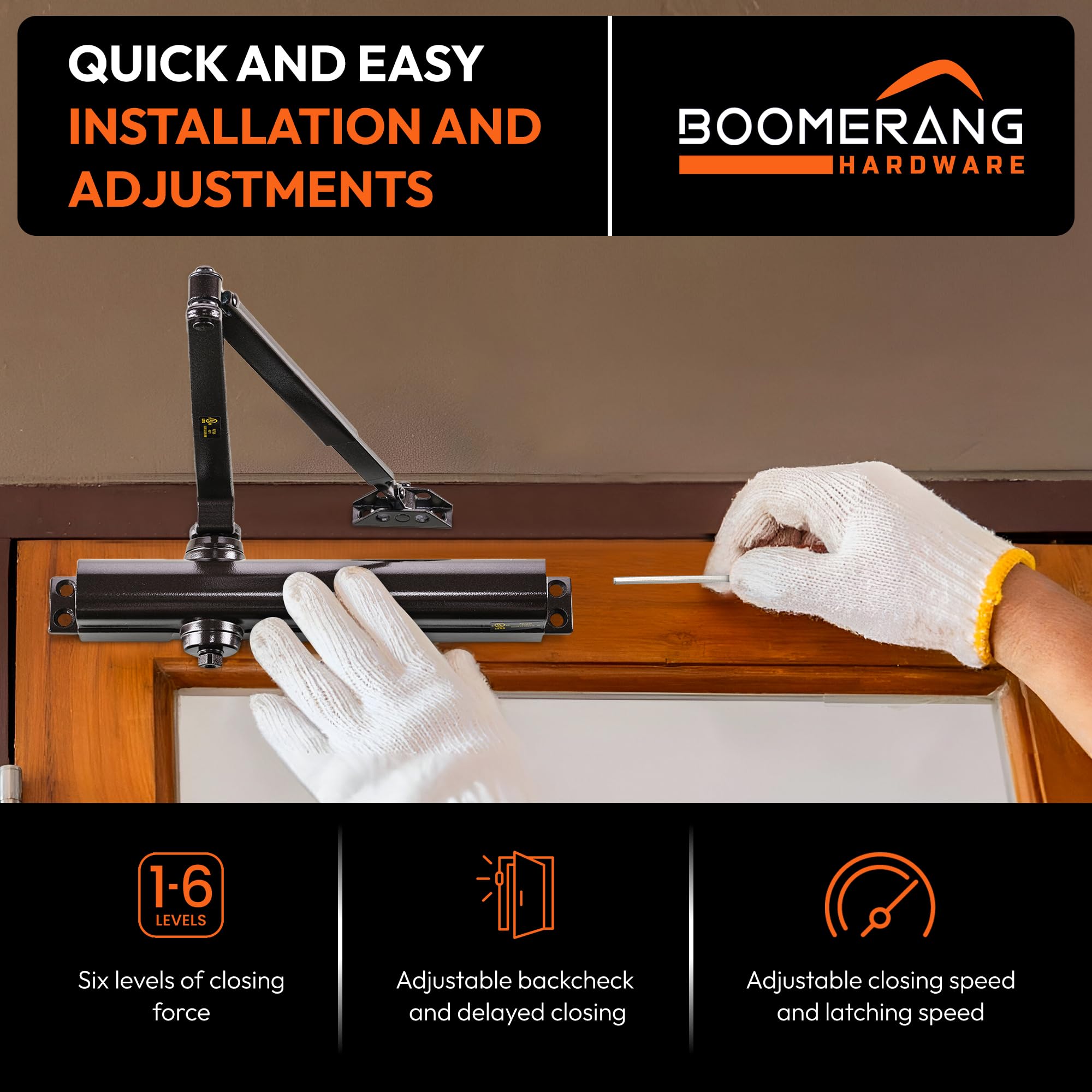

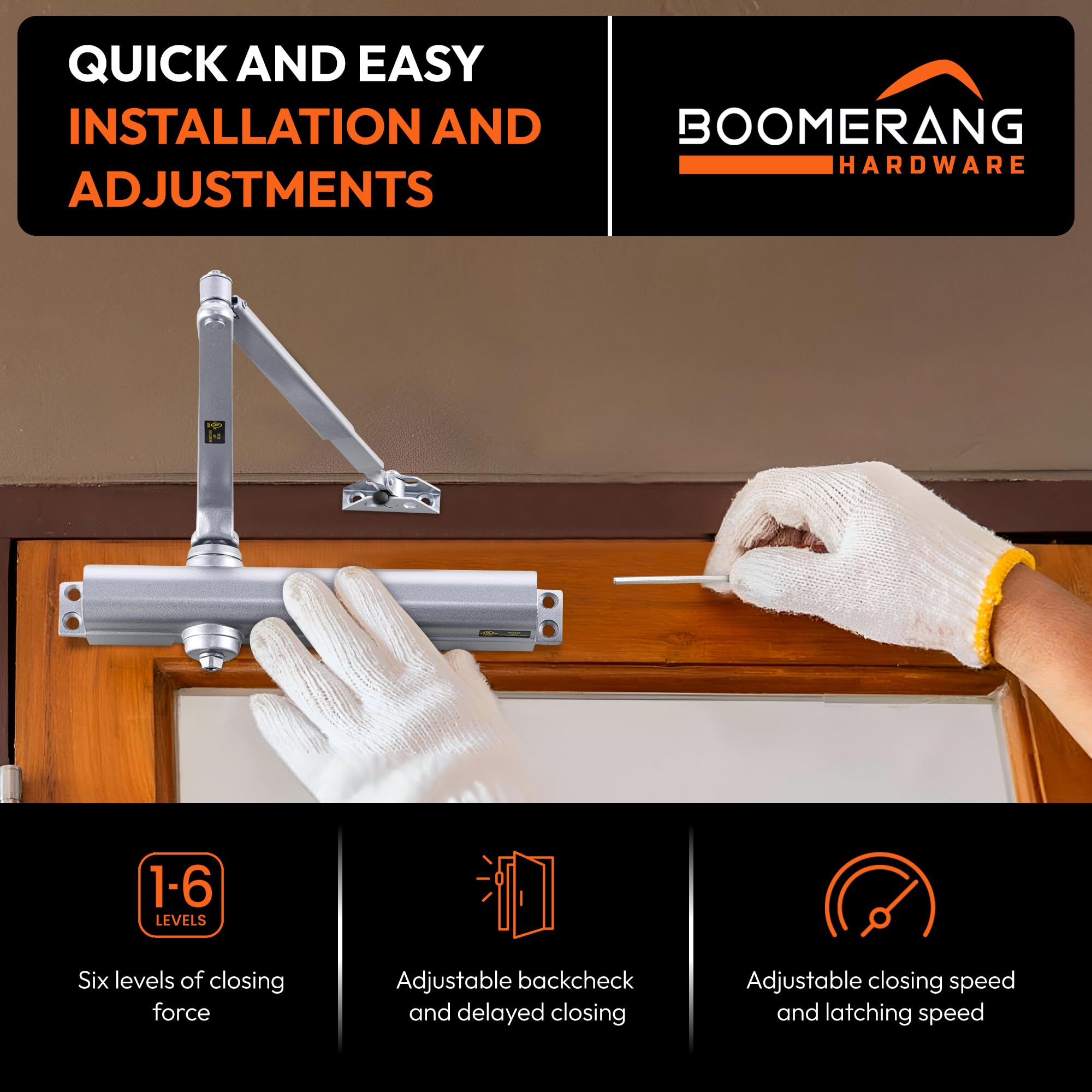

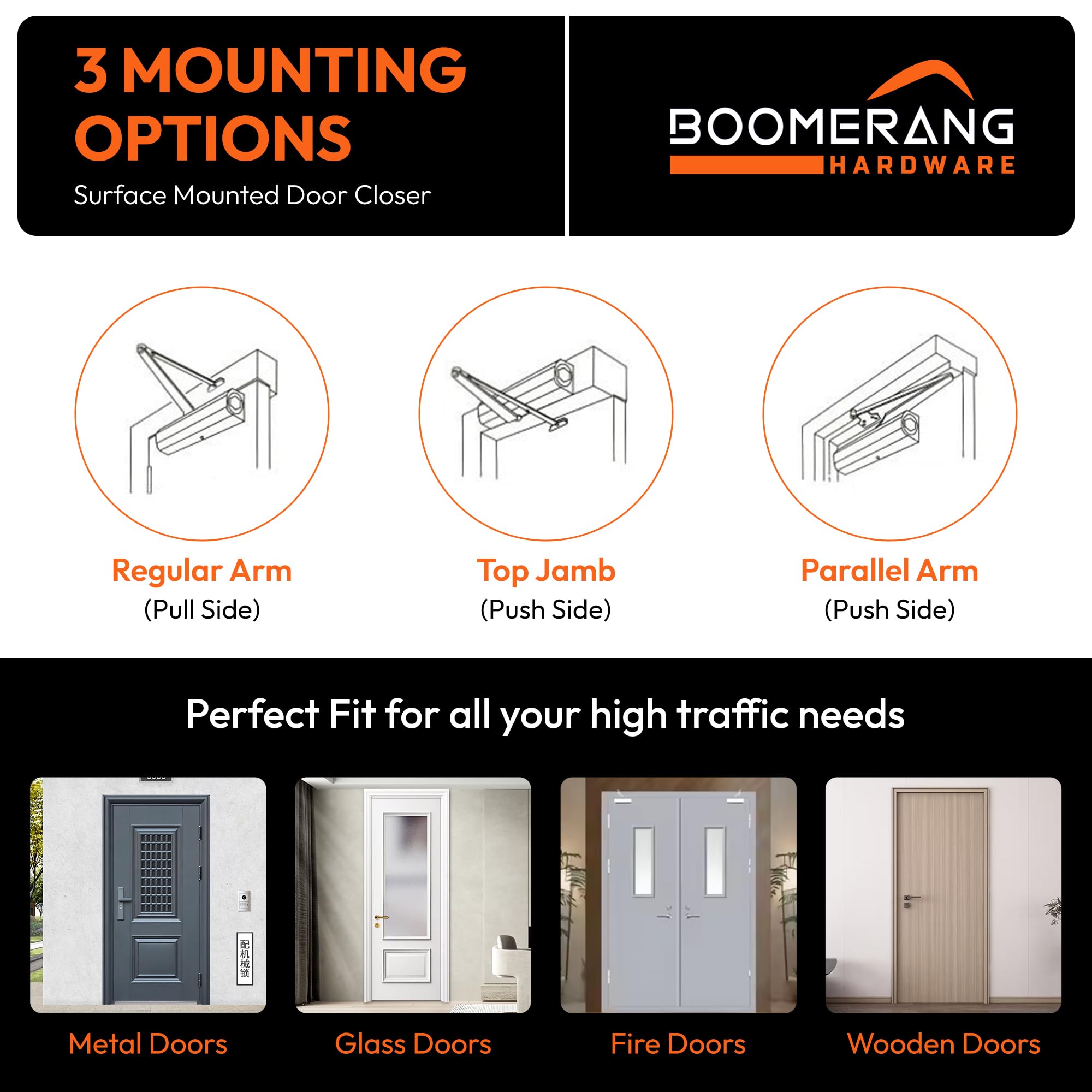

- INSTALLATION: Every pack of commercial door closer we provide contains all the necessary hardware, such as brackets and soffit plate, for installation using any of the 3 mounting types. The mounting options for our surface-mounted door closer are regular arm mounting, top jamb mounting, and parallel arm mounting. With the flexibility to choose the best fit for your door make this the ideal choice for businesses looking to upgrade their security. It is non-handed which makes it perfect for all doors, left and right hand swings and both inswing and outswing doors

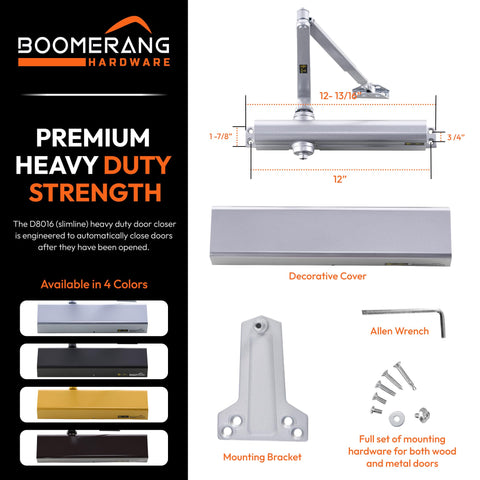

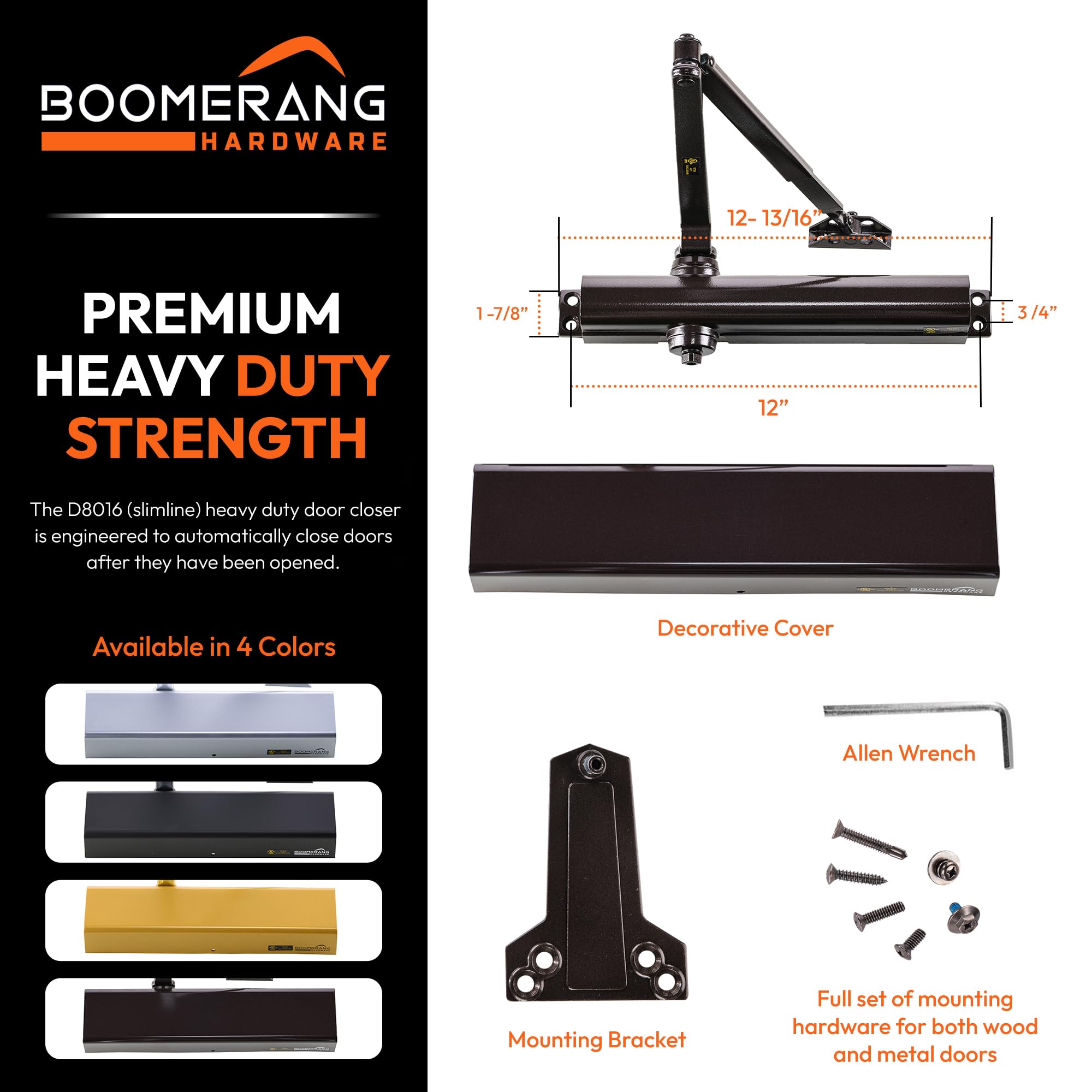

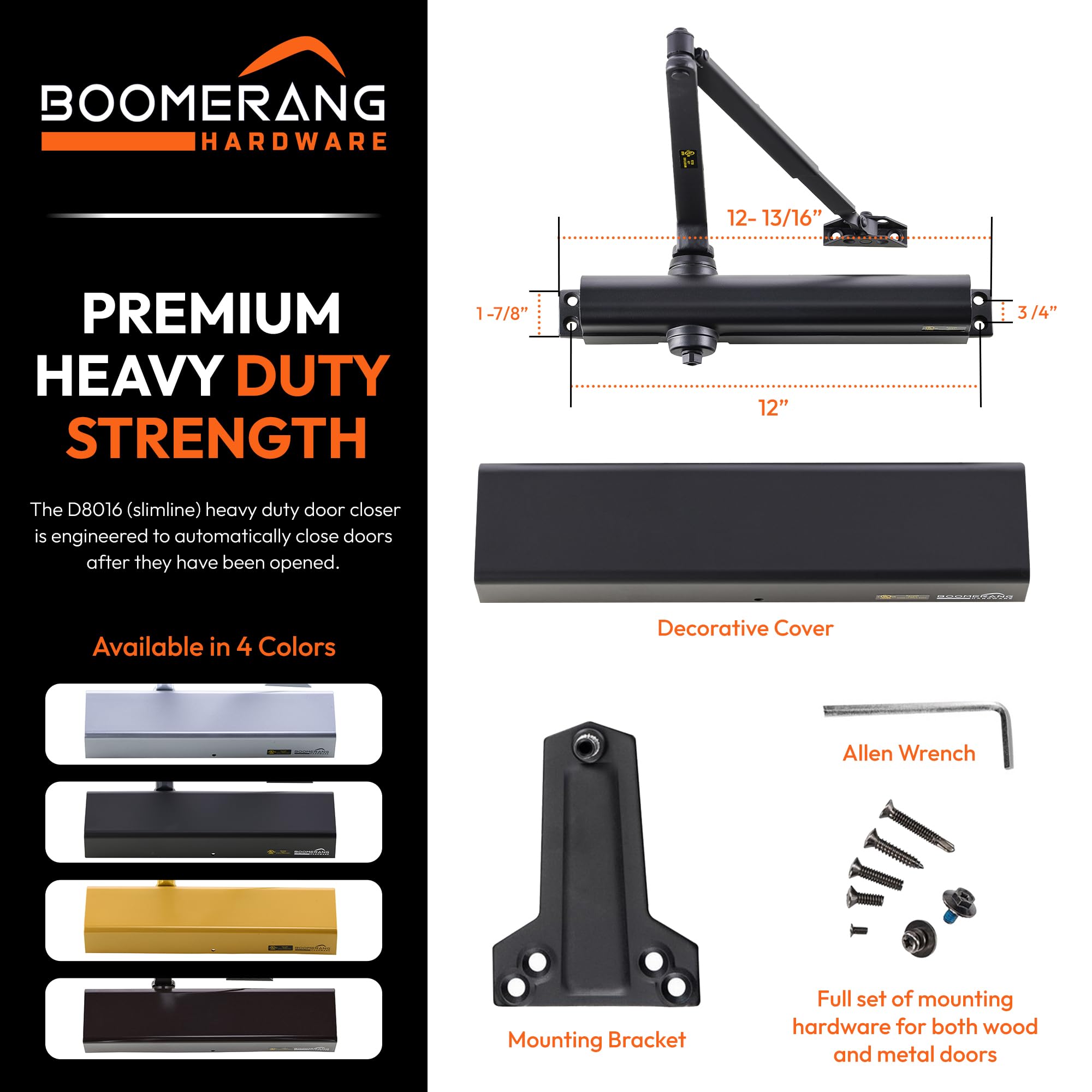

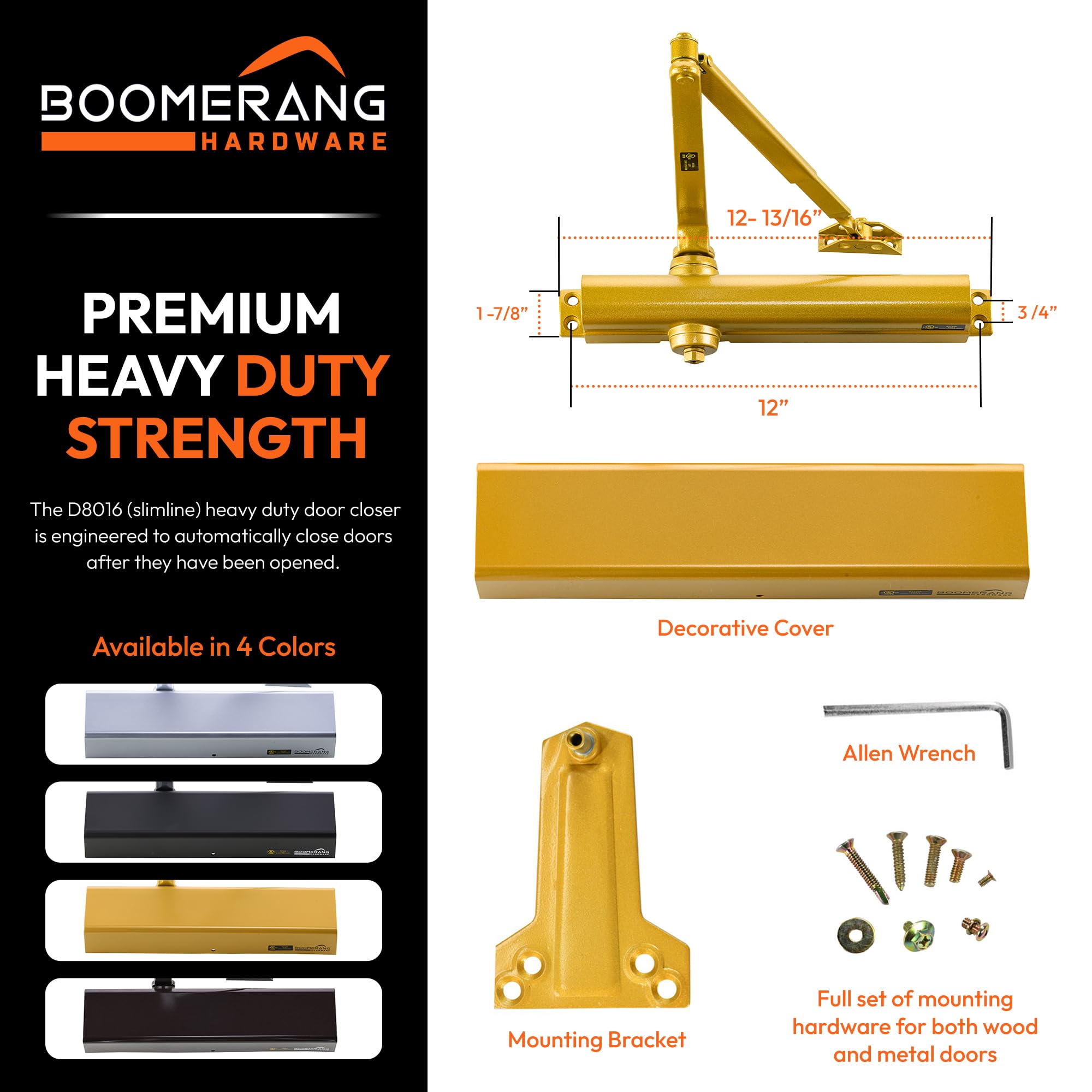

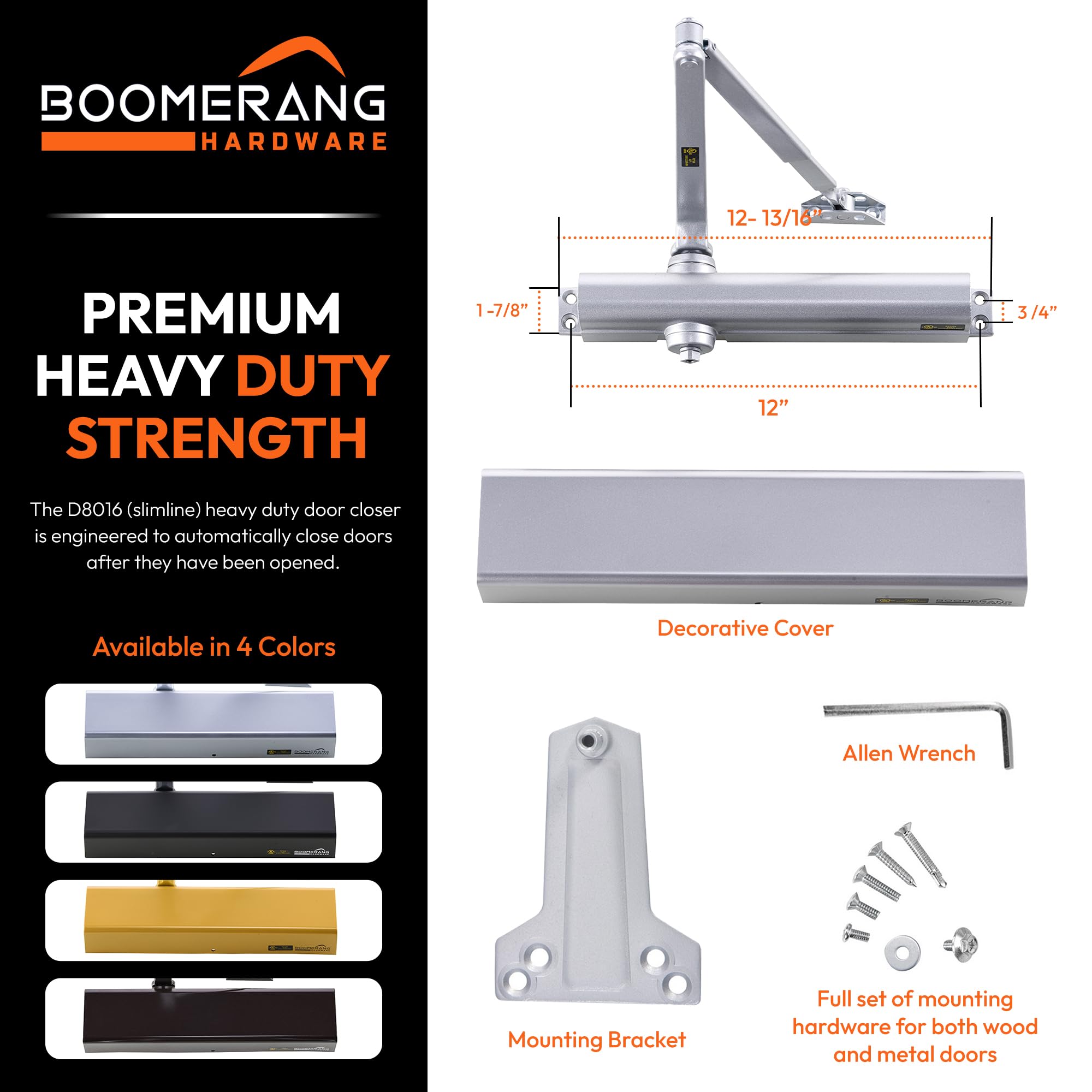

- SPECIFICATIONS: This door closer weighs 7.4 pounds. Its screw/bolt pattern is 12" c-c wide and 3/4" c-c high. It has a footprint height of 2-7/8" (54 mm) and a length of 13-1/16" (332 mm). This automatic door closer's projection is 2-1/8" (54 mm). It can deliver a fixed spring force #1-6 of 2-14 pounds or more of closing force, which makes it ADA compliant.
| Material | Aluminum |
| Brand | Boomerang Hardware |
| Color | Aluminum/Silver |
| Product Dimensions | 13"L x 3"W x 2"H |
| Specification Met | ADA, UL, cUL |
